      冷凝水蒸發器

      產品圖片
      冷凝水蒸發器
      產品描述

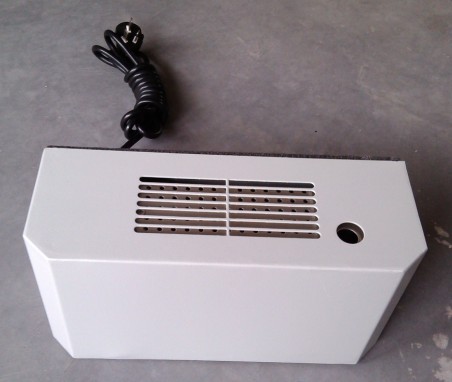

      QYSKJ05-----冷凝水蒸發器

      產品描述:
             冷凝水蒸發器系與本公司生產的機柜空調配套使用,用于冷凝水的收集蒸發。
      使用說明:
            使用時將空調的冷凝水出口接一根塑料水管,另一端插入蒸發器的水管孔即可,注意水管一定要插入到蒸發器里面的不銹鋼水箱內.

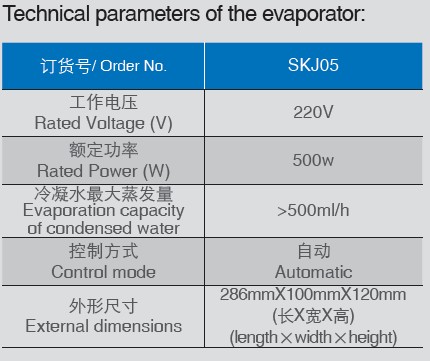

      蒸發器技術參數:

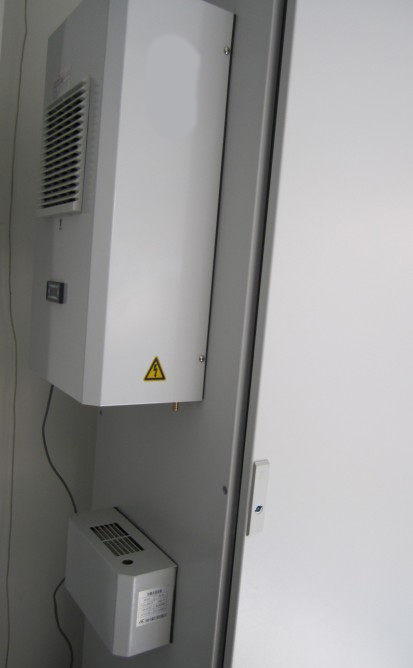

      1.安裝方式:可安裝在空調機下方的側面,應盡量遠離空調.蒸發器工作時會(huì )產生較大量水蒸氣,以免在空調底部結露.如空間不夠,也可直接放置于地上.當放置在地上時,應注意防止人員踢到,以免熱水濺出傷到人員.
      Installation mode: can be installed at the side under the air conditioner and keep it as far as possible from it so as to avoid dew fall at the bottom of the air conditioner as large amount of vapor will be generated when the evaporator works. It can be installed directly on the ground if the space is insufficient. When installing it on the ground, take care not to kick it so as not to get injured by the spilling hot water.

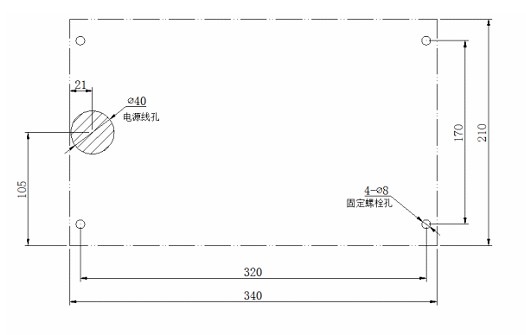

      2.蒸發器安裝在機柜上的開孔尺寸:
      Opening size for installation of evaporator on the cabinet:
      注意事項:Caution notes:
      a. 蒸發器有液位傳感器自動控制,通電時請水平放置蒸發器,勿將其倒置,以免電熱管干燒而損壞.
      The evaporator has automatic control of liquid level sensor, please place the evaporator levelly when powering on, do not turn it upside down otherwise the electric heating tube will be dry heated and damaged.
      b. 蒸發器工作時禁止手放在出汽口上方,以免燙傷.
      Prohibit placing the hand above the venthole when the evaporator works so as not to get scalded.
      c. 大功率空調冷凝水比較多,可選用蒸發量大一號的蒸發器.
      The large power air conditioner will generate more condensed water, better select the evaporator with one gage larger evaporative capacity.
      d. 定期清洗.延長使用壽命.
      Make regular rinse to lengthen its service life.

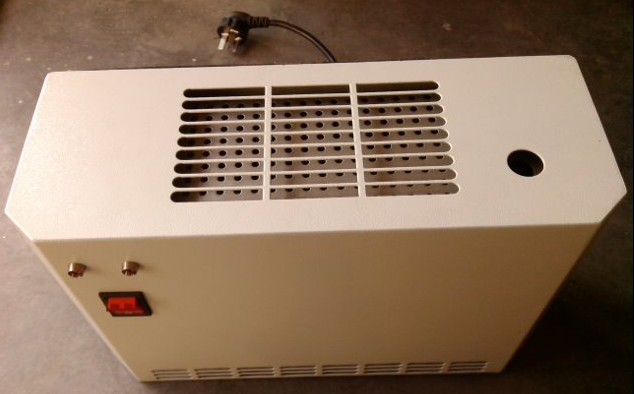

      QYSKJ15-----冷凝水蒸發器

      1. 工作電源:220V
      2. 功率:1560W(雙管工作時)
      3. 冷凝水最大蒸發量:>1400ml/h
      4. 控制方式:自動
      5. 外形尺寸:340mm×130mm×210mm(長×寬×高)
